ASR550

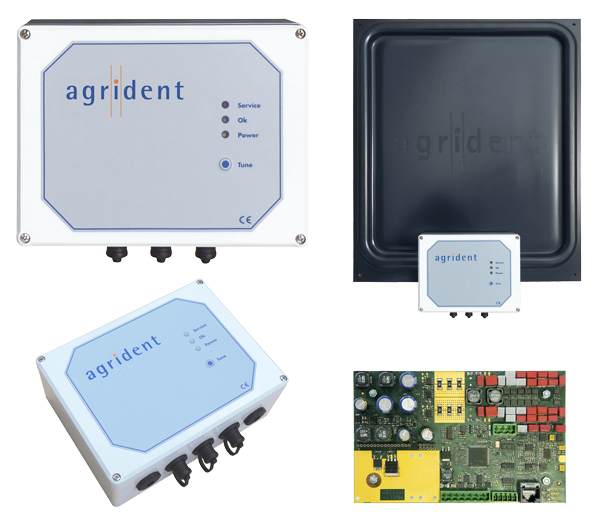

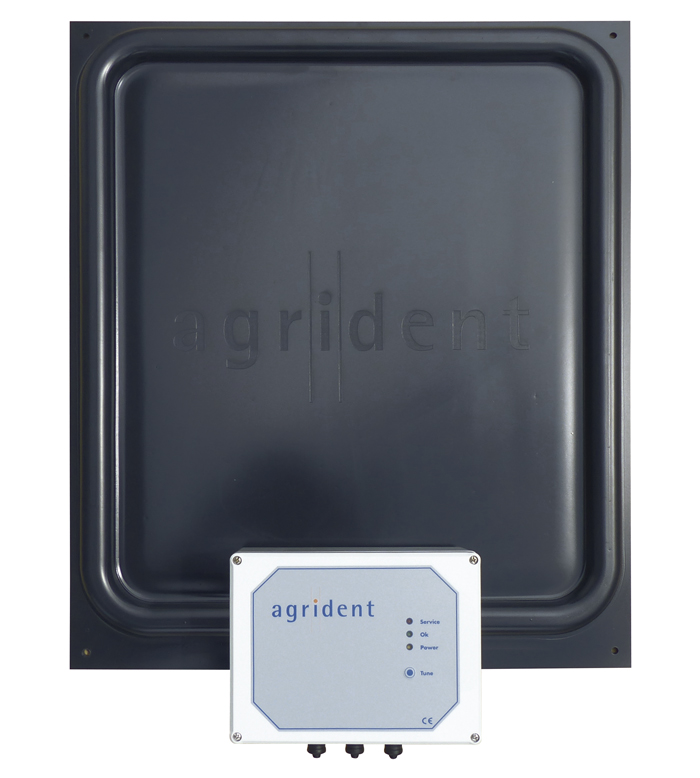

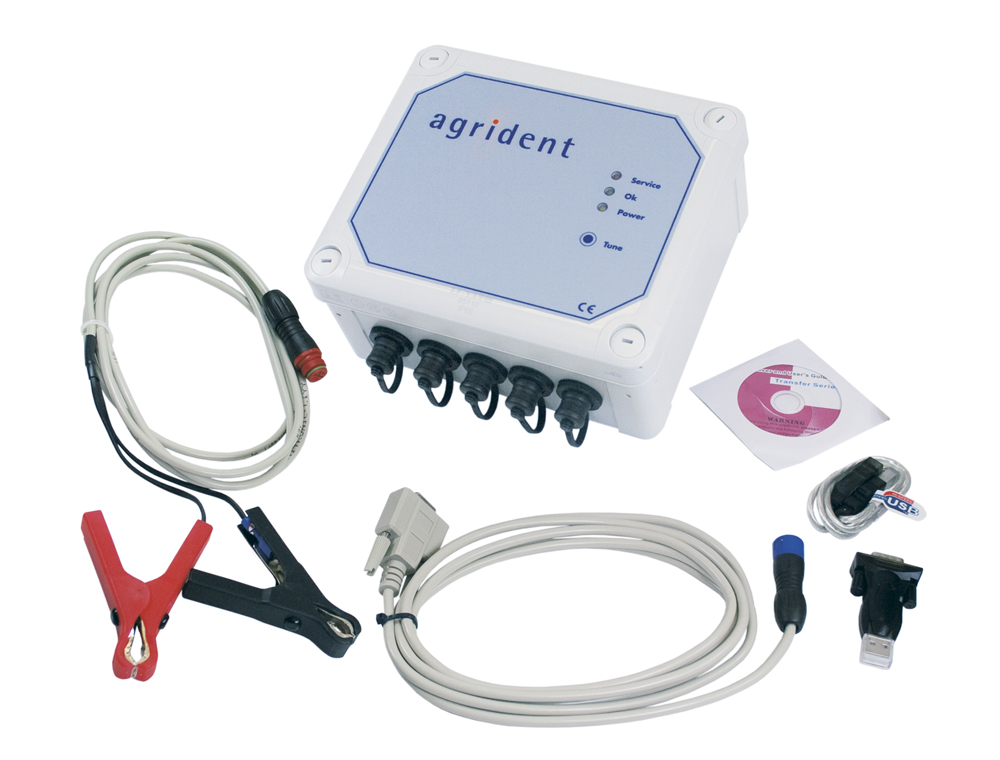

The stationary ISO reader ASR550 is much less sensitive against electrical interference and metal in the environment due to the state of the art technology. In combination with the patented Autotuning function it offers easy installation and integration in all types of applications. In addition to the standard RS232 and RS485 interfaces there are optional Ethernet and Bluetooth modules which offering the whole range of modern communication.

An outstanding new feature is multiplexing in the ISO Mode with the optional multiplexing units AAS050 (2 channels), AAS100 (4 channels) and AAS200 (8 channels). Multiplexing offers an economic solution for all application that does not need high speed reading

Another outstanding feature is the patent pending Integrated Diagnosis Function IDF, which allows on-site diagnosis for evaluating the noise situation without additional hardware like oscilloscopes or spectrum analysers.

The ASR550 is especially designed for continuous operation in feeding stations, scales or sorting gates − even under worse conditions. The wide operating voltage range from 12 to 24 Volt provides more flexibility regarding the power supply. The wireless Synchronization ensures the best HDX reading performance in multi-reader applications. The optional Wired-Synchronisation module ensures the best possible HDX performance even under worse conditions.

The 134.2 kHz RFID is compatible to the ISO Standard 11784/5 and therefore reads all FDX-B and HDX transponders with a very good reading range. RFID Transponders with 125 kHz and widespread H4102 Format can be read optionally.

Technical Data of ASR550

Frequency134.2 kHz
Transponder typesHDX compatible (ISO 11784/5)
FDX-B compatible (ISO 11784/5)
Read rangewith antenna APA206 (50 x 60 cm):

up to 90 cm with HDX
transponder of ø 30 mm

up to 80 cm with FDX-B
transponder of ø 30 mm
InterfacesRS232 (9600 - 115200 Baud)
RS485 (9600 - 115200 Baud)

Optional:
• Bluetooth Class 1 (Master or Slave Mode)
• Ethernet
SynchronizationWireless (for HDX only)

Wired Sync. for HDX and RF-Carrier for FDX optional
Multiplexing With the optinal units:
AAS050 (2 channels)
AAS100 (4 channels)
AAS200 (8 channels)
Power supply12 to 24 V DC, 2 A max
Protection levelIP66 (with ASG566 housing only)
Temperature range -10°C to +60°C
Dimensions ASR550
L x W x H: 160 x 100 x 30 mm

ASG566
L x W x H: 192 x 185 x 90 mm
ApprovalsCE, FCC, IC
